KML-6XXXFA-FXX SERIES
Red Line Laser For 3D Image
Scanning
Feature：
●Japan's industrial-grade laser diode
●Patented precision focal length adjustable
structure
●Industrial design, high stability
●Long life
SPECIFICATIONS：
Model：KML-6320FA-FXX
Wavelength：635 ~ 645 nm RED
Output Power：< 20 mW
Project Distance：< 500 mm
Line Length：< 500 mm

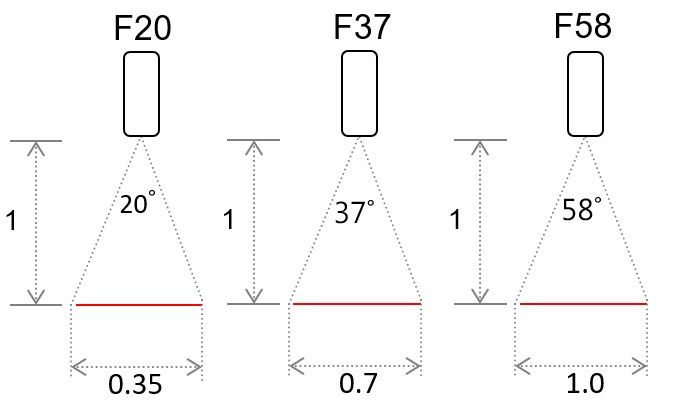

Fan Angle：
Line Thickness：
< 0.1 mm @ WD < 200 mm
< 0.2 mm @ WD < 500 mm
Focus Adjustable / DOF：± 2 mm
Lenses：Acrylic
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 30,000 hr
Dimensions：D 25 X L 100 (mm)
Weight：86± 5 g
Model：KML-6330FA-FXX
Wavelength：635 ~ 645 nm RED
Output Power：< 30 mW
Project Distance：< 500 mm
Line Length：< 500 mm
Fan Angle：
Line Thickness：
< 0.1 mm @ WD < 200 mm
< 0.2 mm @ WD < 500 mm
Focus Adjustable / DOF：± 2 mm
Lenses：Acrylic
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 30,000 hr
Dimensions：D 25 X L 100 (mm)
Weight：86± 5 g
Model：KML-6350FA-FXX
Wavelength：635 ~ 645 nm RED
Output Power：< 50 mW
Project Distance：< 500 mm
Line Length：< 500 mm
Fan Angle：
Line Thickness：
< 0.1 mm @ WD < 200 mm
< 0.2 mm @ WD < 500 mm
Focus Adjustable / DOF：± 2 mm
Lenses：Acrylic
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 30,000 hr
Dimensions：D 25 X L 100 (mm)
Weight：86± 5 g
Model：KML-63XXFA-FXX-24V
Wavelength：635 ~ 645 nm RED
Output Power：20 / 30 / 50 mW
Project Distance：< 500 mm
Line Length：< 500 mm
Fan Angle：
Line Thickness：
< 0.1 mm @ WD < 200 mm
< 0.2 mm @ WD < 500 mm
Focus Adjustable / DOF：± 2 mm
Lenses：Acrylic
Input Voltage：24 VDC ± 10%
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 30,000 hr
Dimensions：D 25 X L 100 (mm)
Weight：86± 5 g
Remarks：
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested. |
